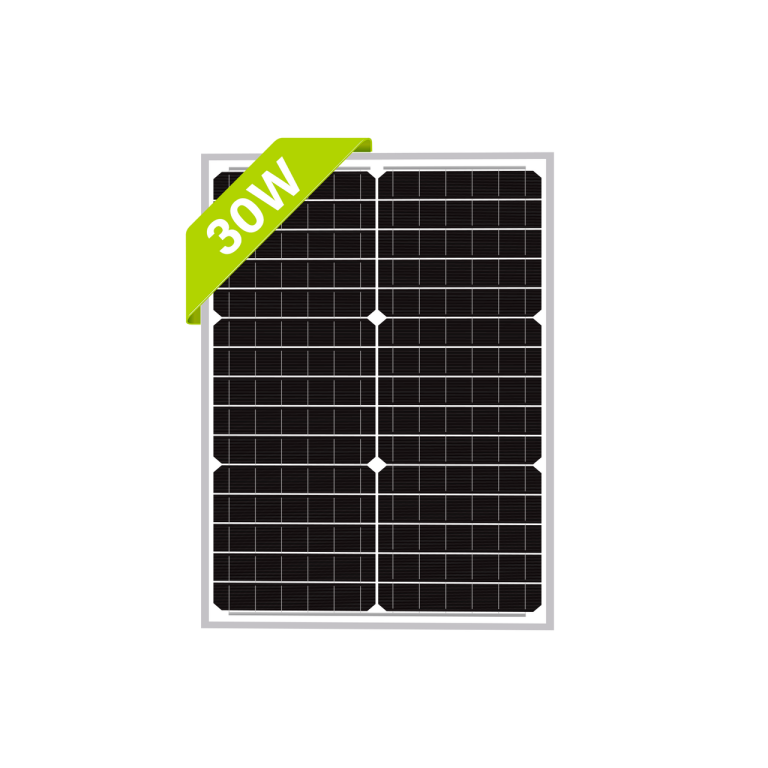

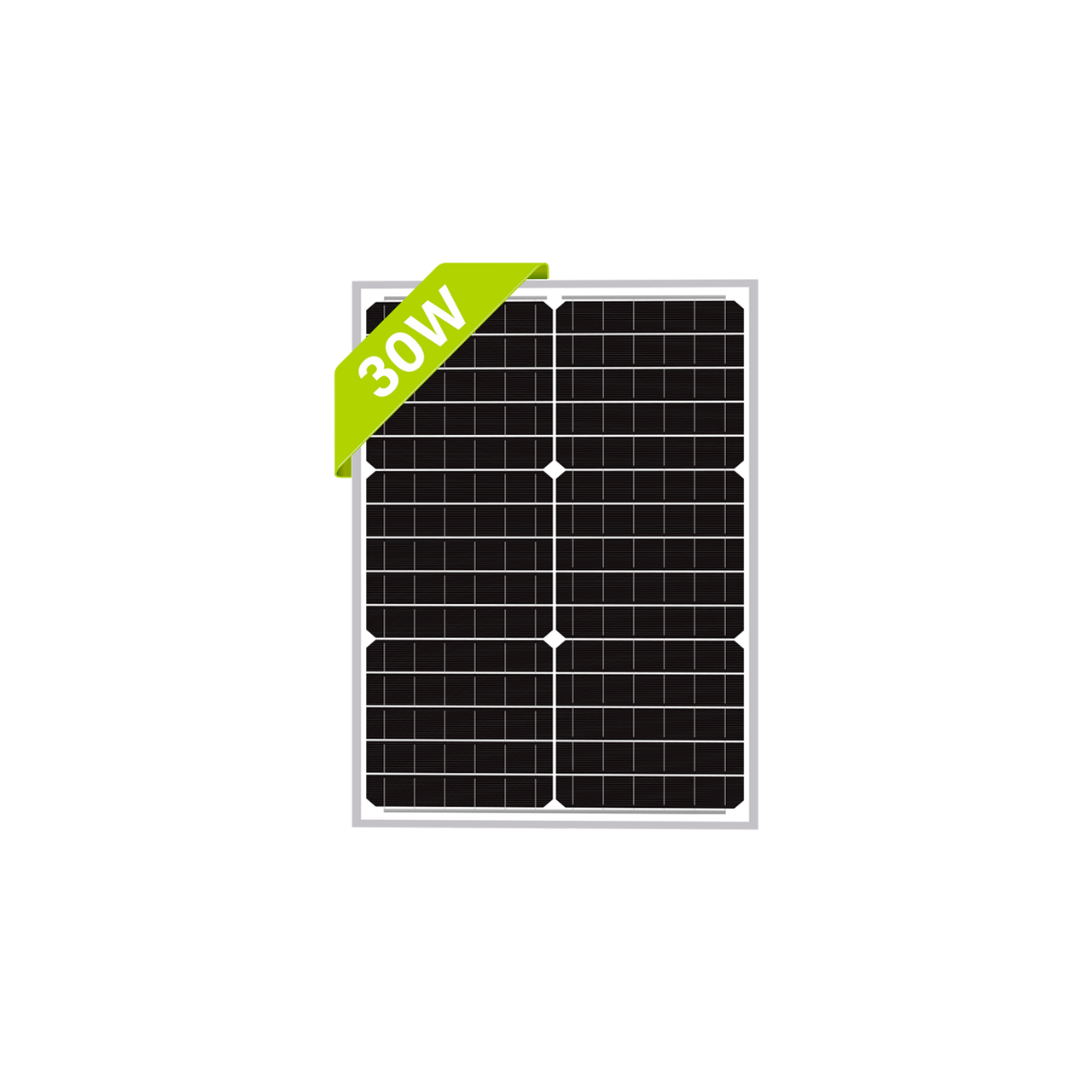

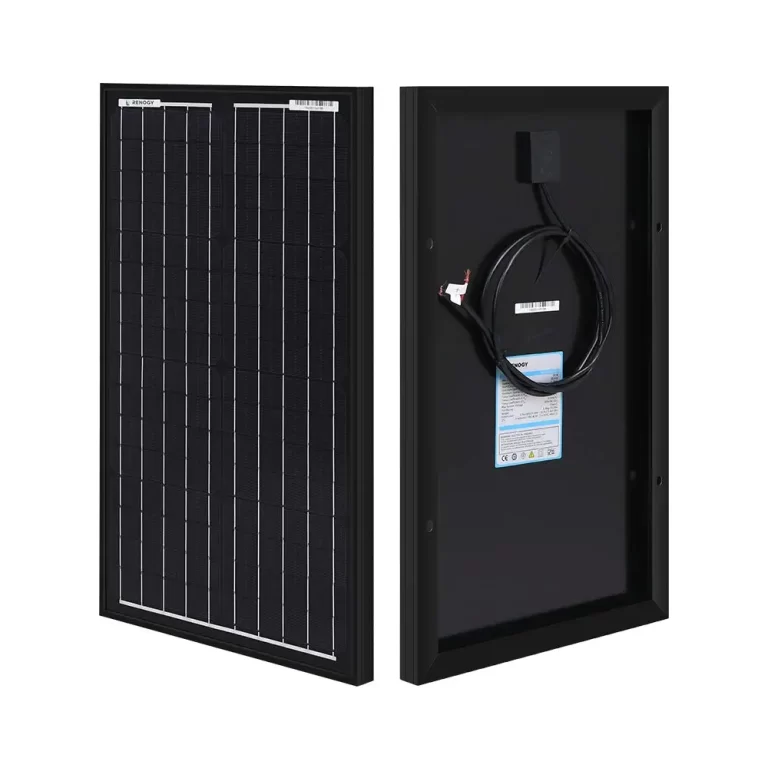

30W 12V Solar panel

属性名称1
属性值1
属性名称2
属性值2
属性名称3
属性值3

Bayankala’s 30W 12V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, house door light and many other small off-grid applications.

Inquire

Specification

30W 12V Monocrystalline Solar Panel

Specification

Maximum Power(Pmax)
Voltage at Pmax (Vmp)
Current at Pmax (lmp)
Open-Circuit Voltage (Voc)
Short-Circuit Current (lsc)
Module Efficiency
Operating Temperature Range
Maximum System Voltage
Power Tolerance
Dimensions
Weight
Cell Type
Number of Cells
Frame Material
Glass Type
Junction Box Rating
Cable Length
Connector Type
Wind Load Resistance
Snow LoadResistance
Certifications
Warranty

Maximum power (Pmax) 10W

30W
17.37V
1.73A
20.04V
1.82A
20%
-40°C to 85°C
1000V DC
+5%

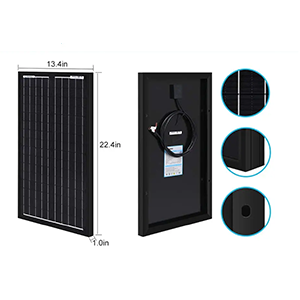

22.44 in x 14.17 in x1.18 in(570mmx360mmx30mm)
5.61 lbs (2.54 kg)
Monocrystalline silicon
30 (2×15 configuration)
Anodized aluminum
High-transparency, low-iron tempered glass
IP68 (Water and Dust Resistant)
35.4 inches (900mm)
MC4 Compatible
Up to 2400 Pa
Up to 5400 Pa
IEC 61701 (Salt Mist Corrosion), CE, TUV5-year workmanship warranty

Applicable Scenarios

Industrial Solar storage

Solar panels are the stars of the residential solar system, gleaming on the rooftop as they tell the world, or at least the neighborhood, that this homeowner cares enough about the environment to ease the household’s carbon footprint while smartly lowering electric bills.

Industrial Solar storage

Commercial Solar Services Solar energy helps your business meet power needs and embrace sustainability. BAYANKALA SOLAR offers a comprehensive range of commercial solar systems. Our services include: -Commercial Solar Installation Whether it’s integrating solar power into new construction projects or retrofitting existing buildings, we have the expertise to design and install a solar system that maximizes energy generation and savings. -Commercial Solar Carports Our solar carports provide shade for vehicles and generate clean energy. Benefit from reduced electricity costs while providing an eco-friendly amenity for employees and customers at your commercial property. -Solar Battery Storage Ensure continuous operation during outages, reduce peak charges, and

IndustrialSolar storage

We provide many Solar Power solutions, Home Energy Storage, Industrial Storage, Portable Storage. Solar panel of customized , 10W 20W 50W 60W 100W 130W 140W 160W 170W 180W 200W 250W 300W 340W 380W 400W, And regular Black 400W , 450W , 500W ,590W 600W 615W
