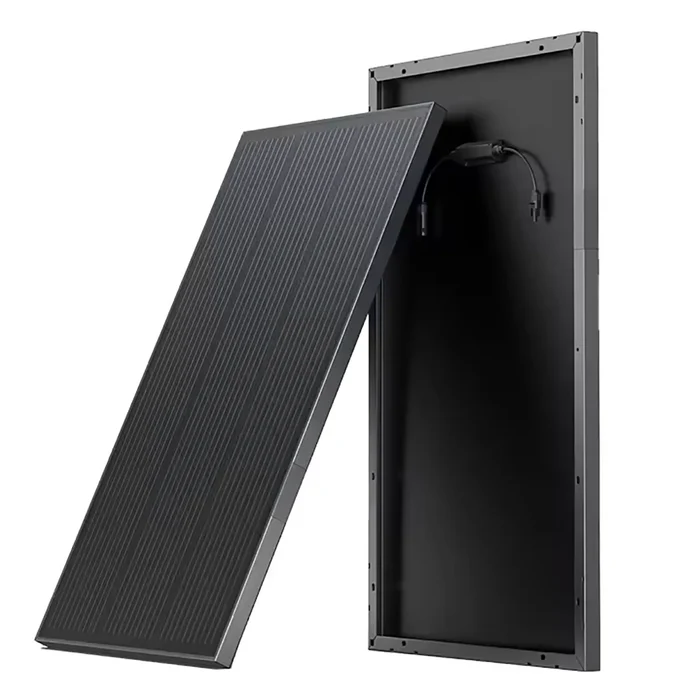

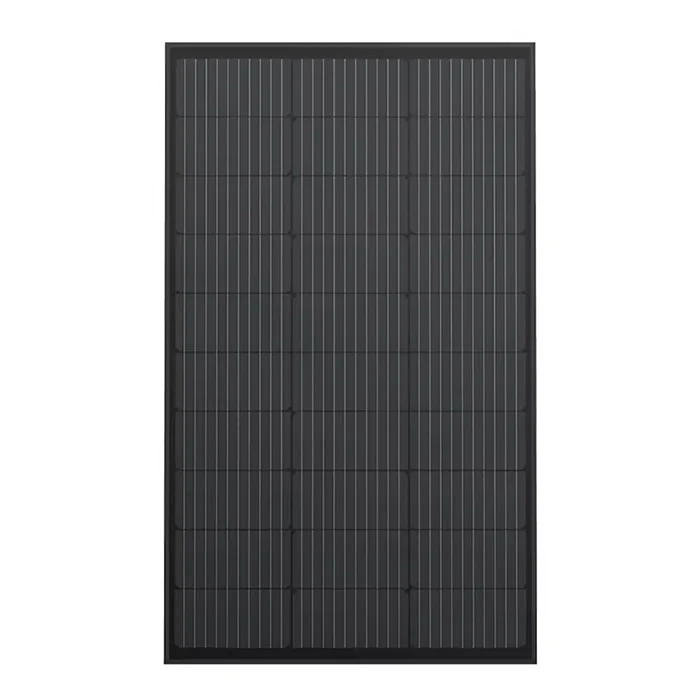

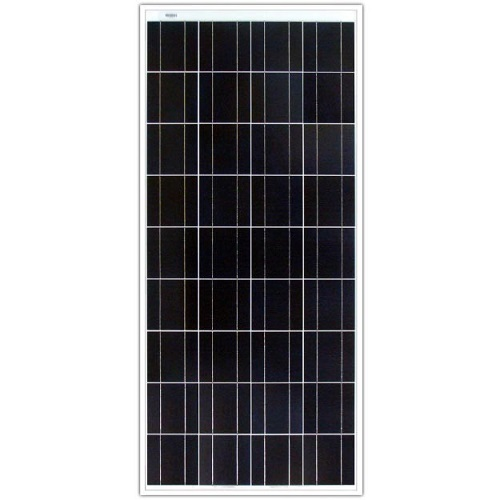

150W 18V Solar Panel

属性名称1
属性值1
属性名称2
属性值2
属性名称3
属性值3

Bayankala’s 150W 18V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, house door light and many other small off-grid applications.

Inquire

Specification

10W 12V Monocrystalline Solar Panel

Features

18 busbar solar cell configuration
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug-and-play junction box
Industry-standard quick-connect cables work in series or parallel
Certified to withstand challenging environmental conditions
Excellent low-light performance on cloudy days, mornings, and evenings

Installation

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
Compatible with on-grid and off-grid inverters

Built-in Components

BAYANKALA SOLAR 150 watt monocrystalline solar panel
Panel leads (pair): 3 feet each
IP65 rated waterproof junction box
IP67 rated waterproof solar connectors
Bypass diodes built-in the junction box

Specifications:

ModelBK-M150
Maximum Power (Pmax)：150W
Maximum Power Voltage (Vmp)：17.5 V
Maximum Power Current (Imp)：8.57 A
Open Circuit Voltage (Voc)：21.8 V
Short Circuit Current (Isc)：8.94 A
Maximum System Voltage (Vmax)：1000VDC
Maximum Series Fuse Rating：15A
Temperature Range：-40 ~ +185°F
Weight：18.1 lb
Dimensions：44.0 in x 26.4 in x 1.2 in

Applicable Scenarios

Industrial Solar storage

Solar panels are the stars of the residential solar system, gleaming on the rooftop as they tell the world, or at least the neighborhood, that this homeowner cares enough about the environment to ease the household’s carbon footprint while smartly lowering electric bills.

Industrial Solar storage

Commercial Solar Services Solar energy helps your business meet power needs and embrace sustainability. BAYANKALA SOLAR offers a comprehensive range of commercial solar systems. Our services include: -Commercial Solar Installation Whether it’s integrating solar power into new construction projects or retrofitting existing buildings, we have the expertise to design and install a solar system that maximizes energy generation and savings. -Commercial Solar Carports Our solar carports provide shade for vehicles and generate clean energy. Benefit from reduced electricity costs while providing an eco-friendly amenity for employees and customers at your commercial property. -Solar Battery Storage Ensure continuous operation during outages, reduce peak charges, and

IndustrialSolar storage

We provide many Solar Power solutions, Home Energy Storage, Industrial Storage, Portable Storage. Solar panel of customized , 10W 20W 50W 60W 100W 130W 140W 160W 170W 180W 200W 250W 300W 340W 380W 400W, And regular Black 400W , 450W , 500W ,590W 600W 615W
